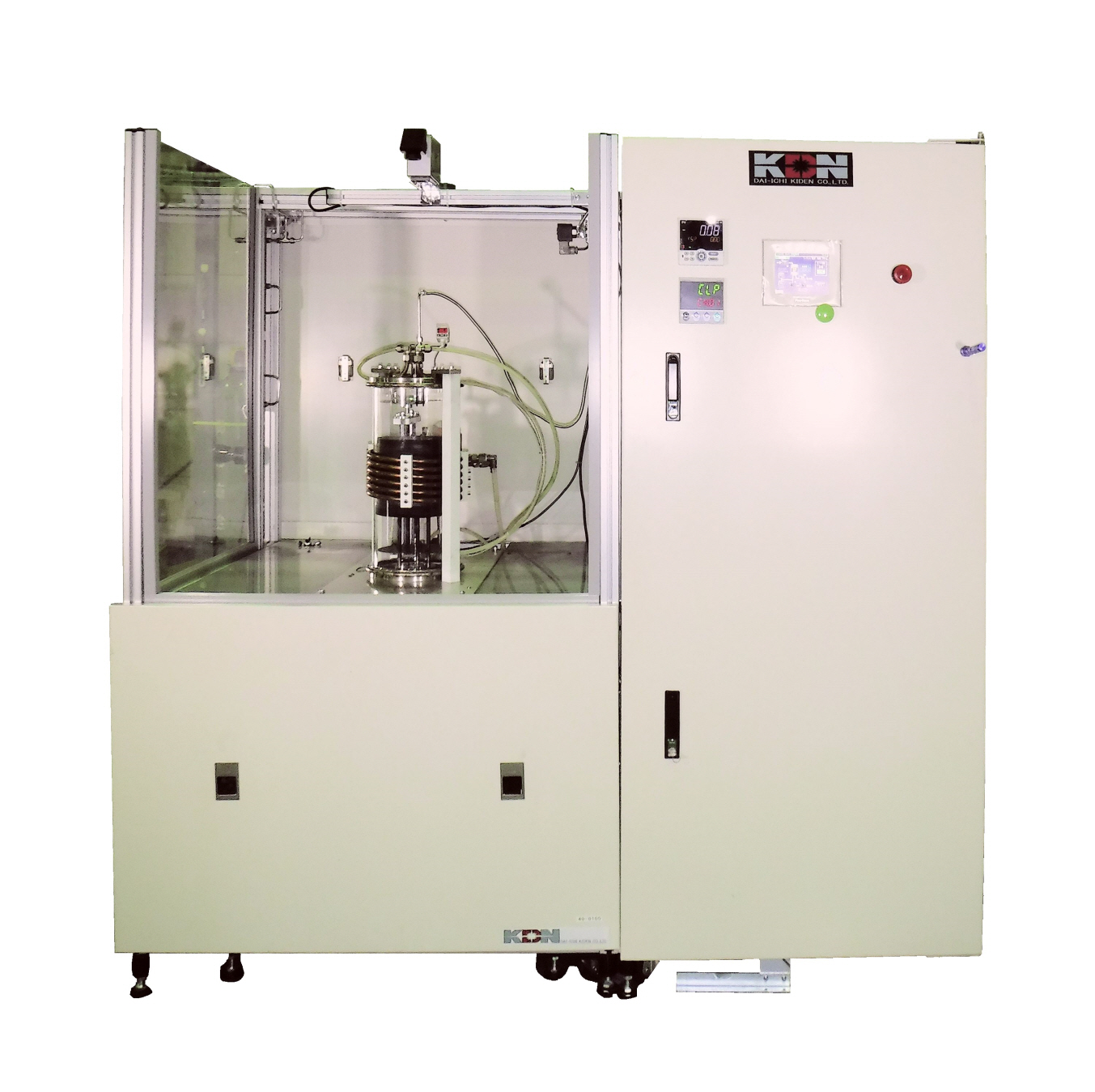

By high frequency induction heating, this apparatus heats the carbon crucible up to around 3500℃ in an inert gas atmosphere.
It achieves the temperature stability and a high temperature rise rate of up to 200℃/min.
You can choose the control method from the temperature control with high-performance radiation thermometer and output control that directly controls high-frequency output.
Experiment specification
| Heating temperature | Max. 3500℃ |
|---|---|
| Atmosphere | After evacuation, an inert gas atmosphere by the atmospheric pressure |
| Crucible recommended | Carbon, ID50(t2) x H48mm |
| Hot zone | Carbon molding insulation material |
| Heating method | High-frequency induction heating |
| The rate of temperature rise | Max. 200℃／min |
Examples of the experiment
- Graphitization processing of new materials
- Melting experiments of high-melting-point material
- Re-crystallization experiments of high-melting-point material
- Alloy creating of the high-melting-point material
We are waiting the demand except the example. Please refer to us.
