Description
This system is is the most common CZ (Czochralski) method crystal grower using the resistance heating .
Putting a seed crystal in the melt within the crucible, then grows the single crystal by pull-up and rotation.
Our ADC (Automatic Diameter Control) system controls the crystal diameter automatically.
Application

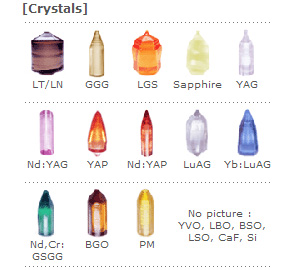

LT／LN、GGG、LGS、Sapphire、YAG、NdYAG、YAP、NdYAP、LuAG、YbLuAG、NdCrGSGG、BGO、PM、YVO、LBO、BSO、LSO、CaF、Si etc.
Specification
| Chamber | Cylindrical water-cooled double structure, vacuum-tight structure, ID1000X1400mm |
|---|---|
| Heat source | Heater (carbon, such as KANTHAL) |
| Heating capacity | Main 70kW, bottom 60kW |
| Heating temperature | Max. 2100℃ |
| Atmosphere | Inert gas, vacuum |
| Vacuum exhaust system | Oil diffusion pump + rotary pump |
| Controller | ADC function |
| Data output | Temperature, crystal weight, each functional unit movement speed and position information, etc. Safety circuit |
