Description
This is a vacuum tube type high frequency power supply that supports higher frequencies than transistor inverter does.
It realizes high frequency and becomes a power supply indispensable for FZ method with large load fluctuation.
We manufactures vacuum tube type high frequency power supply with wide frequency and output range.
Feature
- Can be used for large load fluctuations
- Various work coils can be used with this one power supply
- By using a high frequency band of MHz, local heating is possible
- Corresponds to a wide range of frequencies, so you can choose any type of work
Specification
| Output | 5~150kW |
|---|---|
| Frequency | 150kHz~2.2MHz |
※ By customer’s request, we also produce products other than the above.

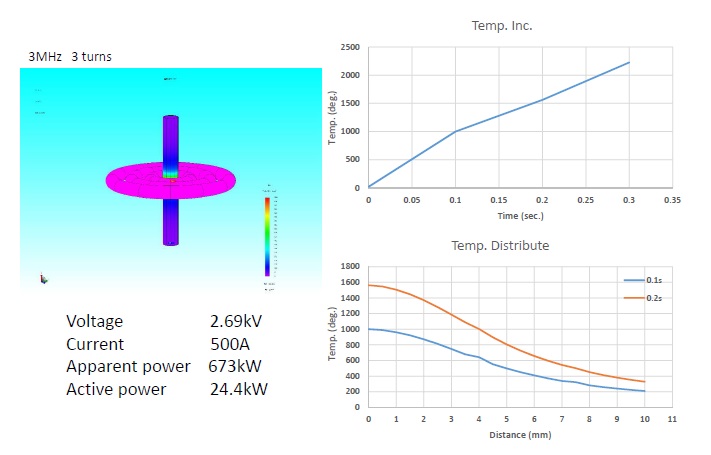

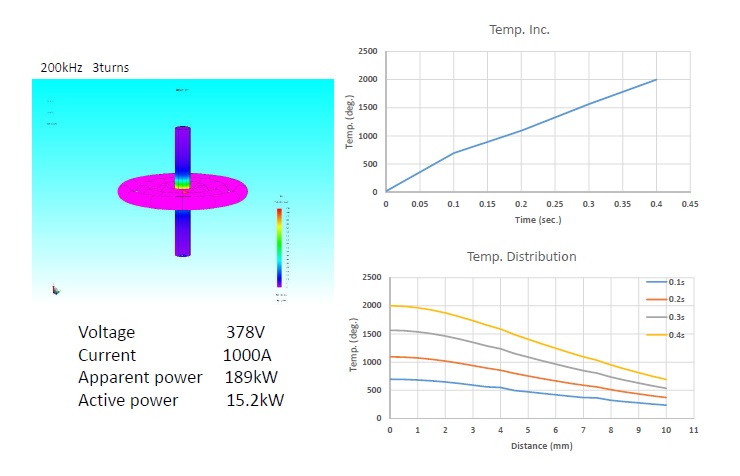

Simulation example
We propose a heating specification by simulation.
