Product

Vacuum tube high frequency power supply

Vacuum tube high frequency power supply

Corresponds to any load

Possible to use a wide frequency band




VT-Series

Description

This is a vacuum tube type high frequency power supply that supports higher frequencies than transistor inverter does.
It realizes high frequency and becomes a power supply indispensable for FZ method with large load fluctuation.
We manufactures vacuum tube type high frequency power supply with wide frequency and output range.

Feature

  • Can be used for large load fluctuations
  • Various work coils can be used with this one power supply
  • By using a high frequency band of MHz, local heating is possible
  • Corresponds to a wide range of frequencies, so you can choose any type of work



Specification

 Output  5~150kW
 Frequency  150kHz~2.2MHz



By customer's request, we also produce products other than the above.

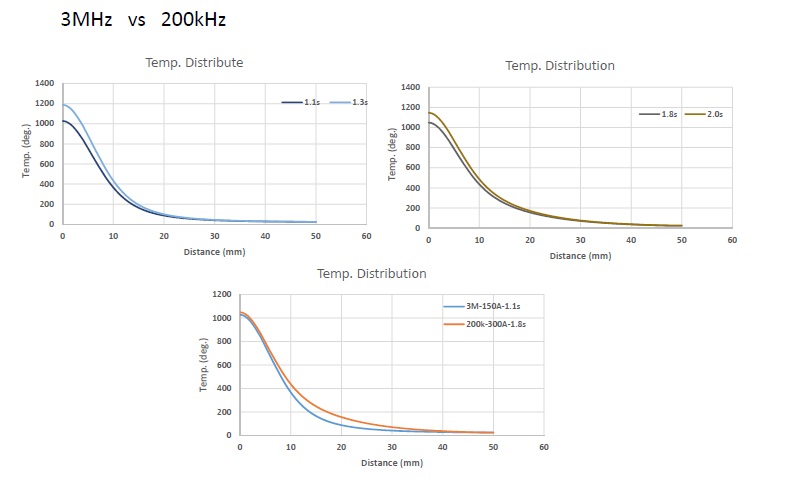

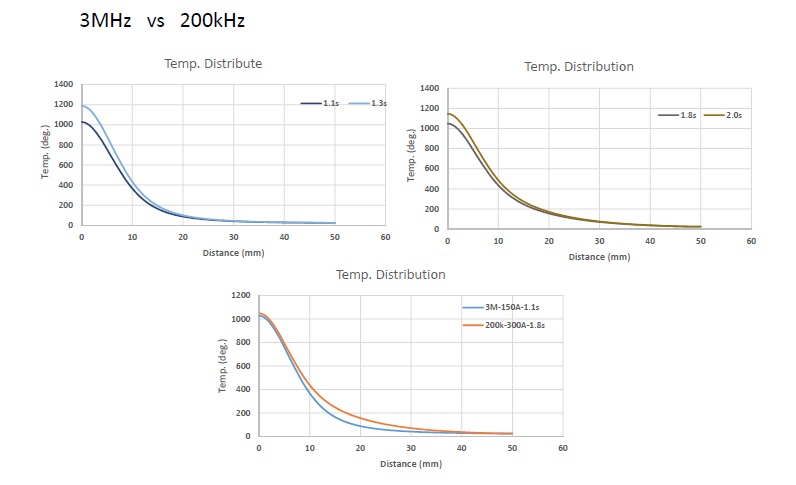

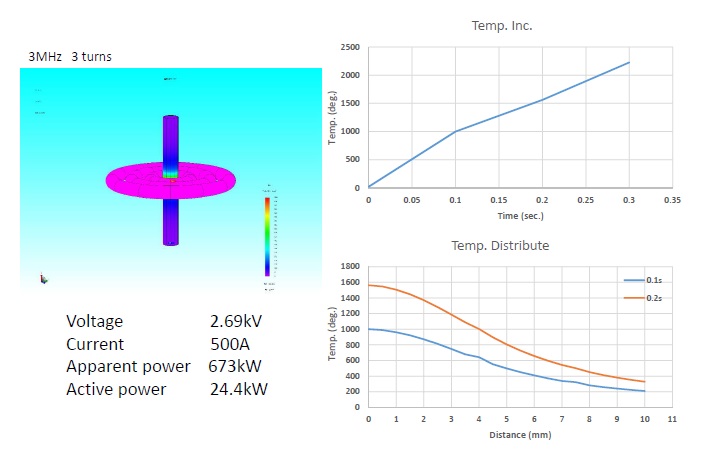

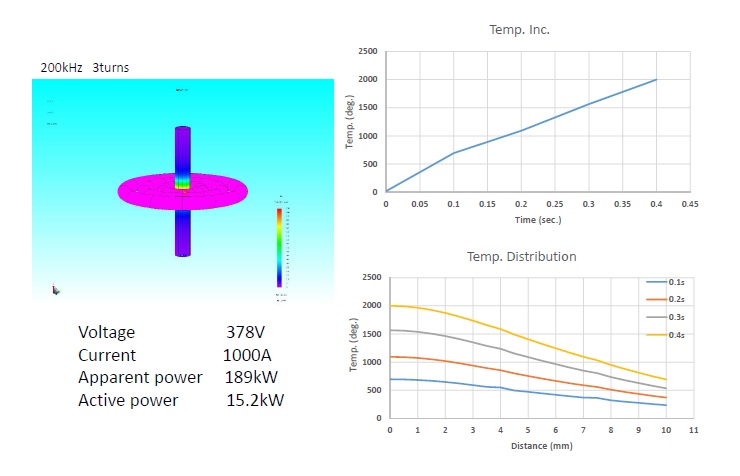

Simulation example

We propose a heating specification by simulation.
